Trench Fan Coils FCHV
High-output trench fan coils for heating, cooling and ventilation near glazed facades.
| Technical Overview | |
|---|---|
| Length | 1200 – 3000 mm |
| Height | 160 mm |
| Width | 363 mm |
| Cooling capacity | up to 3649 W |
| Max pressure | 25 bar |
| Fan type | cross-flow |
| Motor type | EC |
| Operating voltage | 24 V DC |
| Fan speed control | 0-10 V |
| Heat exchanger | copper – aluminium |
| Key Features |
|---|
| For heating, cooling and ventilation |
| EC fan motors |
| Low noise operation |
| Suitable for heat pumps |
| Stainless steel casing |
| Reinforced and sealed casing |
| Suitable for dry and wet cooling |
| 2 and 4-pipe versions |
| 10 year warranty |
- Description

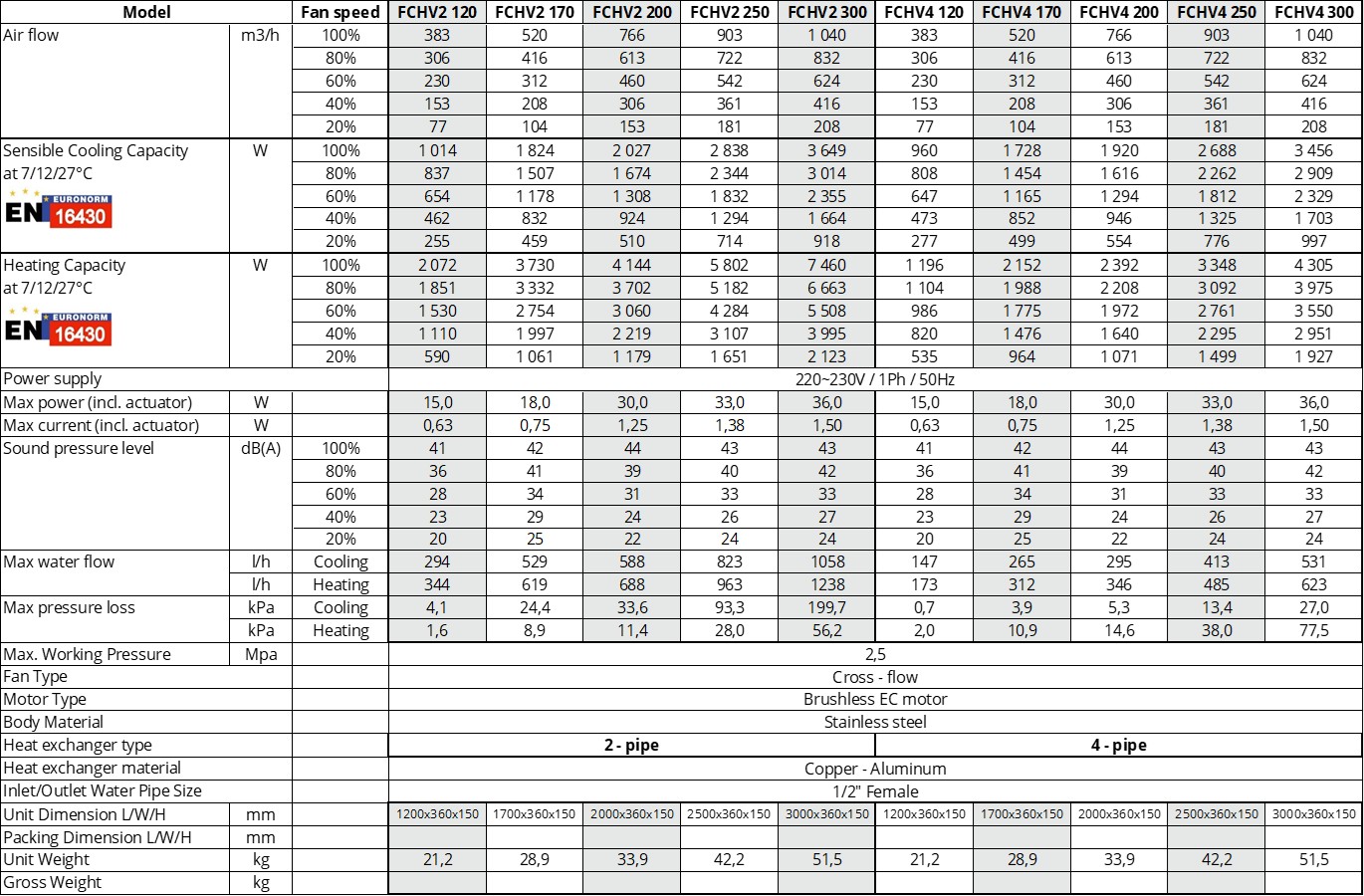

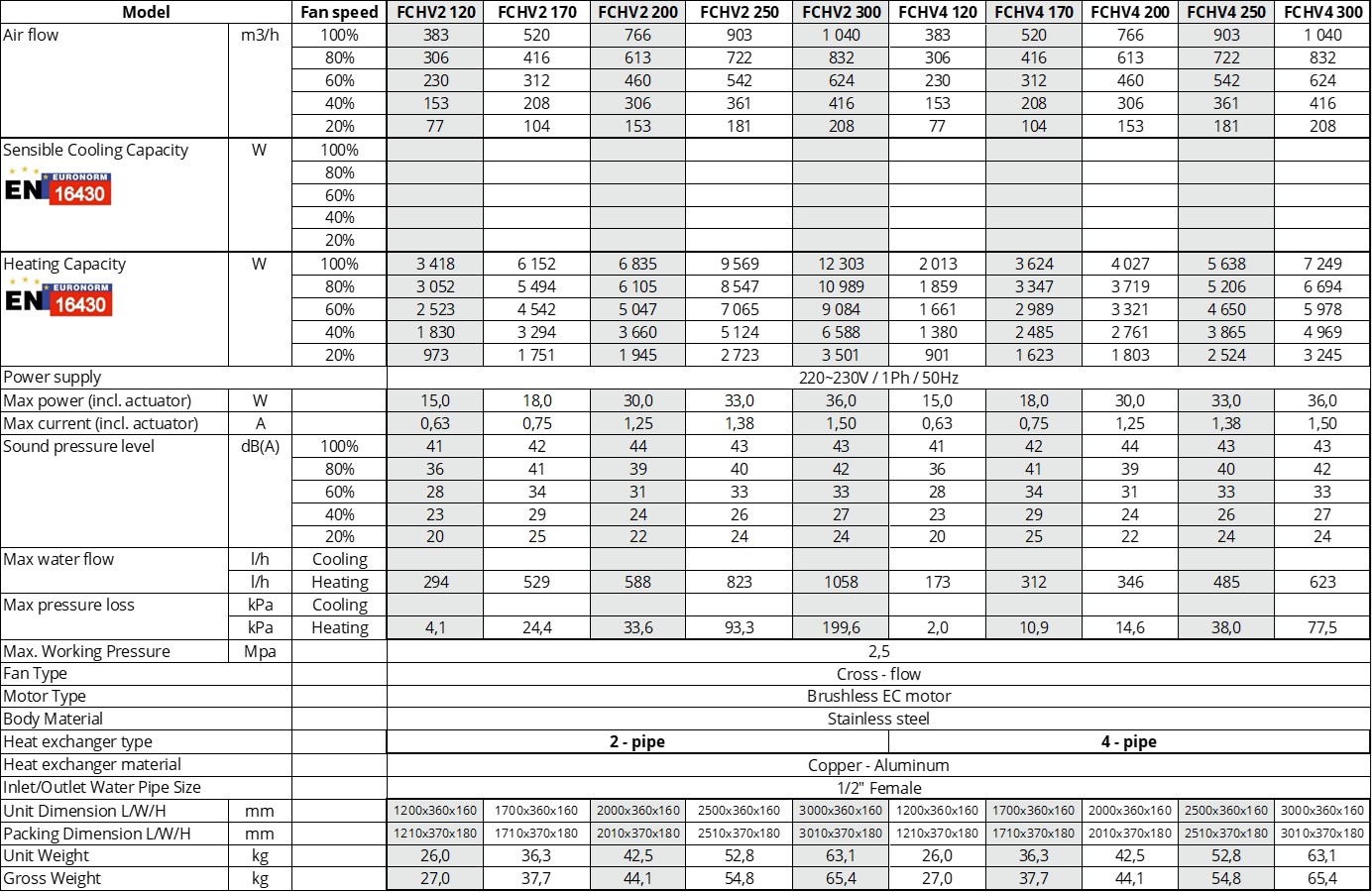

- Capacity

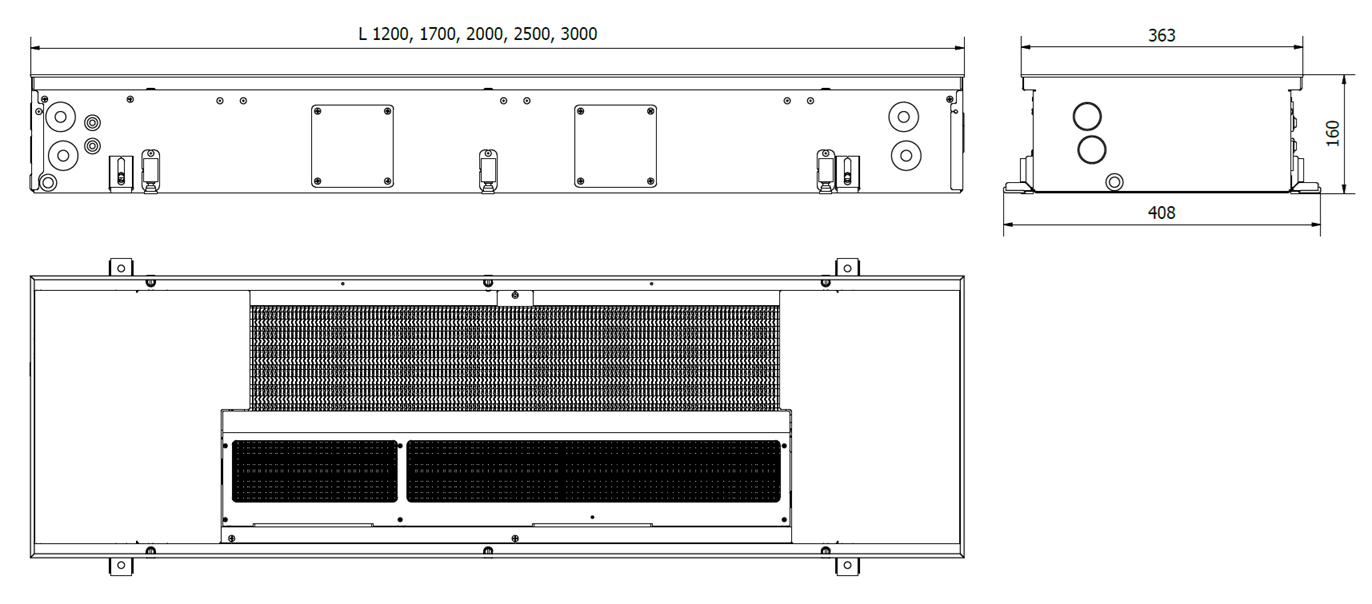

- Dimensions
- Download
- Grilles
- Accessories
- Order codes

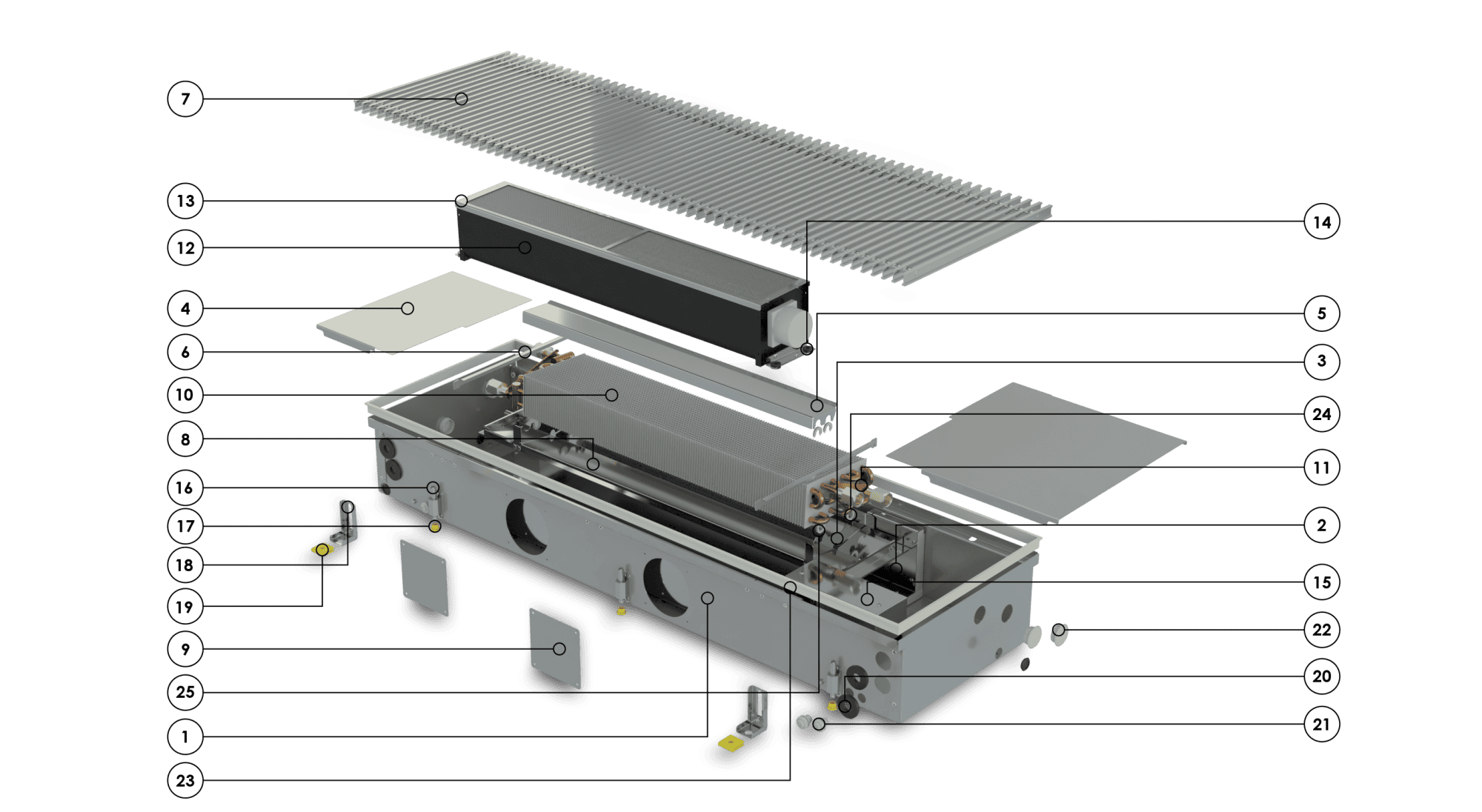

FCHV trench fan coils are designed for efficient room heating, cooling and fresh air supply near glazed facades and panoramic windows. Integrated connections for supply air ducts allow the units to combine heating, cooling and ventilation functions in a single floor-integrated solution.
Due to the high heating and cooling capacity, the units can be used as primary climate control devices in residential and commercial applications. Integrated drain pans ensure reliable operation in cooling mode below the dew point.
EC fans provide low noise operation, fast temperature response and even distribution of heat, cool and fresh air throughout the room. The units are available in 2 and 4-pipe versions and operate efficiently with low-temperature systems, including heat pumps and condensing boilers.
Durable stainless steel casings are designed for pedestrian loads, while double-sided aluminum or oak wood grilles allow seamless integration into different interior concepts.
ROLL-UP ALUMINUM GRILLES GR
LINEAR ALUMINUM GRILLES GR-L
ROLL-UP WOODEN GRILLES GR
Room Thermostat TW24
For maintaining the set room temperature. Controls the A24NC actuator
- Dimensions 88 x 88 mm
- Weekly temperature schedule programming
- Operating temperature 5 - 35°C
- Operating voltage - 24V DC, current - 3A
- E power - 1.5W
Thermostatic valve (straight) TVSP15
For regulating the water flow. Controlled by the A24NC actuator
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Lockshield valve (straight) LS15
For opening, closing, and setting the maximum water flow
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Lockshield valve (angle) LA15
For opening, closing, and setting the maximum water flow
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Actuator A24NC
For opening and closing the thermostatic valve. Controlled by the TW24 room thermostat
- Operating voltage - 24V DC
- E power - 2.5W
- Protection class - IP54
- Connection thread - M30 x 1.5mm
- Casing material PC/ABS
Control unit CB60
For connecting and powering fans, A24NC actuators, and TW24 room thermostat
- 24V DC power supply
- Power - 20W
- Current - 0.84A
- E connection terminals
- Stainless steel casing
CONVECTOR ORDER CODE
| MODEL | LENGTH, cm | WIDTH, cm | HEIGHT, cm | EXAMPLE |
| FCHV2 | 200 | 36 | 16 | FCHV2 200 |
| FCHV4 | 200 | 36 | 16 | FCHV4 200 |
GRILLE ORDER CODE
| MODEL | LENGTH, cm | WIDTH, cm | MATERIAL | EXAMPLE |
| GR | 200 | 36 | ALS | GR 200-36-ALS |
| GR-L | 200 | 36 | ALS | GR-L 200-36-ALS |
| GR – roll-up grilles | ALS – aluminum grilles, silver color | |
| GR-L – linear grilles | AL10 – aluminum grilles, brown color | |
| AL50 – aluminum grilles, black color | ||
| OAK – oak grilles | ||
ACCESSORY ORDER CODES
ORDER
| MODEL | CODE |
| Return Flow Limiter (straight) | LS15 |
| Return Flow Limiter (angled) | LA15 |
| Thermostatic valve (straight) | TVSP15 |
| Room thermostat | TW24 |
| Actuator 24NC | A24NC |
| Control unit | CB60 |
