Trench heaters FH4-M
High-output trench heaters for glazed facades and low-temperature systems.
| Technical Overview | |
|---|---|
| Length | 843 – 3000 mm |
| Height | 85 mm |
| Width | 177 mm |
| Capacity | up to 6007 W |
| Max pressure | 25 bar |
| Fan type | cross-flow |
| Motor type | EC |
| Operating voltage | 24 V DC |
| Fan speed control | 0-10 V |
| Heat exchanger | copper – aluminium |
| Key Features |
|---|
| Forced convection |
| EC fan motors |
| Low noise operation |
| Suitable for heat pumps |
| Stainless steel casing |
| Reinforced and sealed casing |
| 10 year warranty |
- Description

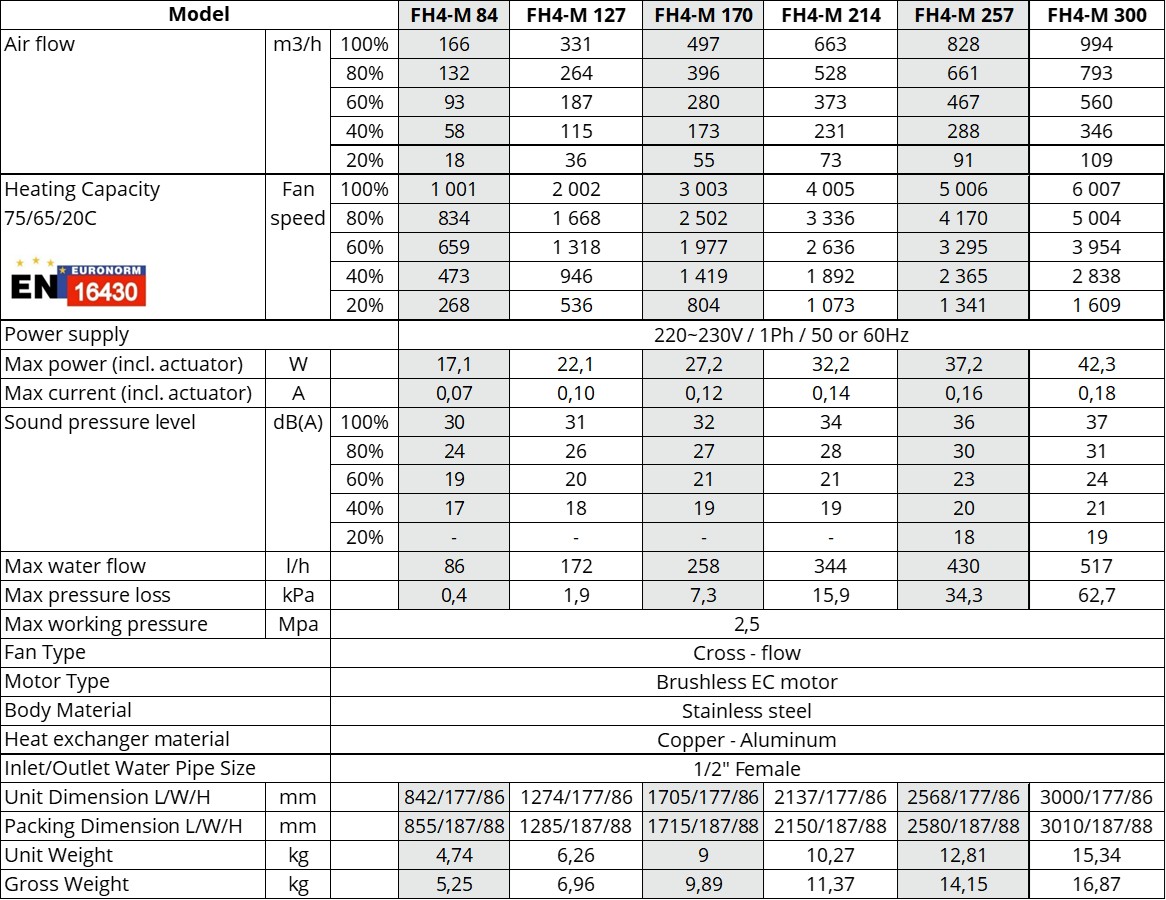

- Capacity
- Dimensions
- Download
- Grilles
- Accessories
- Order codes
FH4-M trench heaters are designed for high-capacity heating in spaces with strict acoustic requirements. Due to the extremely low noise level, the units are widely used in bedrooms, hotel rooms and living spaces where thermal comfort must be ensured without audible background noise.
The units are suitable for low-temperature heating systems, including heat pumps and condensing boilers. Integrated EC fans ensure high convection efficiency, even heat distribution and fast response to temperature changes.
FH4-M units are equipped with durable stainless steel casings adapted for pedestrian loads and daily use in residential and commercial applications. For architectural integration, double-sided aluminum or oak wood grilles are available.
ROLL-UP ALUMINUM GRILLES GR
LINEAR ALUMINUM GRILLES GR-L
ROLL-UP WOODEN GRILLES GR
Room Thermostat TW24
For maintaining the set room temperature. Controls the A24NC actuator
- Dimensions 88 x 88 x 37,5 mm
- Weekly temperature schedule programming
- Operating temperature 5 - 35°C
- Operating voltage - 24 VDC, current - 3A
- Power - 1.5W
Thermostatic valve (straight) TVSP15
For regulating the water flow. Controlled by the A24NC actuator
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Lockshield valve (straight) LS15
Lockshield valve (straight) LS15
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Lockshield valve (angle) LA15
For opening, closing, and setting the maximum water flow
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Actuator A24NC
For opening and closing the thermostatic valve. Controlled by the TW24 room thermostat
- Operating voltage - 24V DC
- E power - 2.5W
- Protection class - IP54
- Connection thread - M30 x 1.5mm
- Casing material PC/ABS
Control unit CB20
For connecting and powering fans, A24NC actuators, and TW24 room thermostat
- 24V DC power supply
- Power - 20W
- Current - 0.84A
- E connection terminals
- Stainless steel casing
CONVECTOR ORDER CODE
| MODEL | LENGTH, cm | WIDTH, cm | HEIGHT, cm | EXAMPLE |
| FH4-M | 214 | 17.7 | 8.6 | FH4-M 214-17-86 |
GRILLE ORDER CODE
| MODEL | LENGTH, cm | WIDTH, cm | MATERIAL | EXAMPLE |
| GR | 214 | 17 | ALS | GR 214-17-ALS |
| GR-L | 214 | 17 | ALS | GR-L 214-17-ALS |
| GR – roll-up grilles | ALS – aluminum grilles, silver color | |
| GR-L – linear grilles | AL10 – aluminum grilles, brown color | |
| AL50 – aluminum grilles, black color | ||
| OAK – oak grilles | ||
ACCESSORY ORDER CODES
ORDER
| MODEL | CODE |
| Return Flow Limiter (straight) | LS15 |
| Return Flow Limiter (angled) | LA15 |
| Thermostatic valve (straight) | TVSP15 |
| Room Thermostat | TW24 |
| Actuator 24V | A24NC |
| Control unit | CB20 |
