Trench heaters FC
Heating by natural convection – without fans
Low thermal inertia allows delivering heat only as needed, thus significantly reducing energy consumption and avoiding overheating of rooms
Silent – suitable for rooms with strict acoustic requirements
Reliable and durable solution, requiring minimal maintenance
Wide range of sizes and heating capacities from 160 models
Robust stainless steel casings, designed for pedestrian loads and capable of supporting the weight of several adults
Double-sided aesthetic grilles made of aluminum or oak wood
10-year warranty on the entire device
Designed and manufactured in Lithuania
- Description

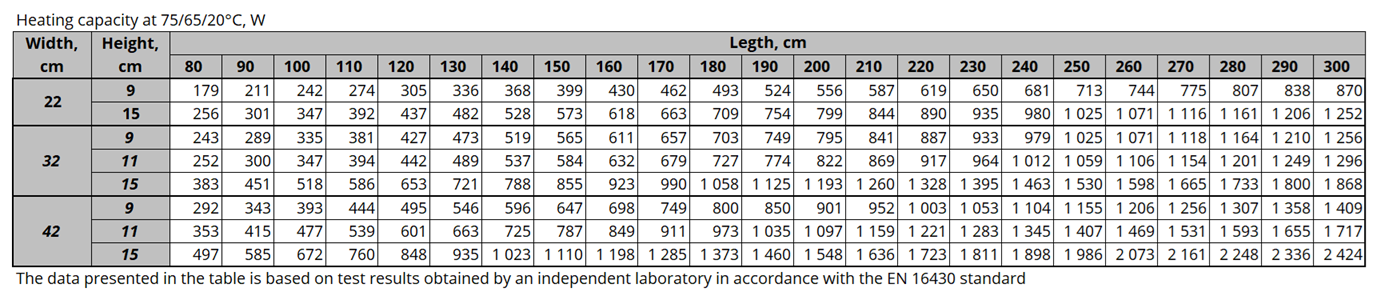

- Capacity
- Dimensions
- Download
- Grilles
- Accessories
- Order codes
FC series natural convection floor convectors are designed for room heating without fans, using the principle of natural air circulation.
The units operate completely silently, making them particularly suitable for rooms with high acoustic comfort requirements, such as bedrooms, hotel rooms, or living spaces.
Due to their reliable construction without moving parts, FC convectors have an exceptionally long service life and require no complex maintenance.
Low thermal inertia allows for quick response to temperature changes, making FC one of the most economical solutions, enabling precise maintenance of the set room temperature (up to ±0.5 °C).
Convectors are equipped with robust stainless steel casings, ensuring durability and reliable operation even in high-traffic areas.
The FC design is adapted for pedestrian loads – it can be safely walked on and supports the weight of several adults.
For architectural integration, double-sided aesthetic grilles made of aluminum or oak wood are used, allowing the solution to be adapted to the flooring and interior concept.
ROLL-UP ALUMINUM GRILLES GR
LINEAR ALUMINUM GRILLES GR-L
ROLL-UP WOODEN GRILLES GR
TW230 Room Thermostat
For maintaining the set room temperature. Controls the A230NC actuator
- Dimensions 88 x 88 x 37,5 mm
- Weekly temperature schedule programming
- Operating temperature 5 - 35°C
- Operating voltage - 230 VAC, current - 3A
- E power - 1.5W
Straight thermostatic valve TVS15
For regulating the water flow. Controlled by the A24NC actuator
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Straight lockshield valve LS15
For opening, closing, and setting the maximum water flow
- Operating temperature -10 - 120 ℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
Angled lockshield valve LS15
For opening, closing, and setting the maximum water flow
- Operating temperature -10℃ - 120℃
- Thread 1/2″
- Pressure class - PN10
- Kvs - 2,00
- Body - nickel-plated bronze
A230NC actuator for thermostatic valve
For opening and closing the thermostatic valve. Controlled by the TW230-16 room thermostat
- Operating voltage - 230 VAC
- E power - 2.5 W
- Protection class - IP54
- Connection thread - M30 x 1.5 mm
- Casing material PC/ABS
Thermostatic Head THC
For controlling the heating device according to the set room temperature
- Temperature range 0℃ - 27℃
- Frost protection
- Capillary tube length - 1.2 m
- Connection thread - M30 x 1.5mm
- Casing material - ABS
CONVECTOR ORDER CODE
| MODEL | LENGTH, cm | WIDTH, cm | HEIGHT, cm | EXAMPLE |
| FC | 100 | 32 | 11 | FC 100-32-11 |
GRILLE ORDER CODES
| MODEL | LENGTH, cm | WIDTH, cm | MATERIAL | EXAMPLE |
| GR | 200 | 32 | ALS | GR 200-32-ALS |
| GR-L | 140 | 22 | AL50 | GR-L 140-22-AL50 |
| GR – roll-up | ALS – aluminum, silver color | |
| GR-L – linear | AL10 – aluminum, brown | |
| AL50 – aluminum, black | ||
| OAK – oak | ||
ACCESSORY ORDER CODES
| MODEL | ORDER CODE |
| Return Flow Limiter (Angled) | LA15 |
| Return Flow Limiter (Straight) | LS15 |
| Thermostatic radiator valve with pre-setting (Straight) | TVSP15 |
| Thermostatic Head with Capillary | THC |
| Electrothermal Actuator 230V AC | A230NC |
| Room Thermostat | TW230 |
