Trench heaters with natural convection FC

Trench heaters with natural convection FC
Heat output up to 7 322 W
Length from 80 to 500 cm
Width 22, 32 ir 42 cm
Height 9, 11, 15, 30 ir 45 cm
Heating Natural convection
Into the catalog
FC izometrija shadow.png FC_shadow.png FC 54_001_1.png FC 54_001.png FC 54_004_1.png FC Final3.png
10-years warranty Made of stainless steel Tested by independent accredited laboratory according to EN16430 Max working pressure 25 bar Noiseless Reinforced casings Small water content Acoustically insulated

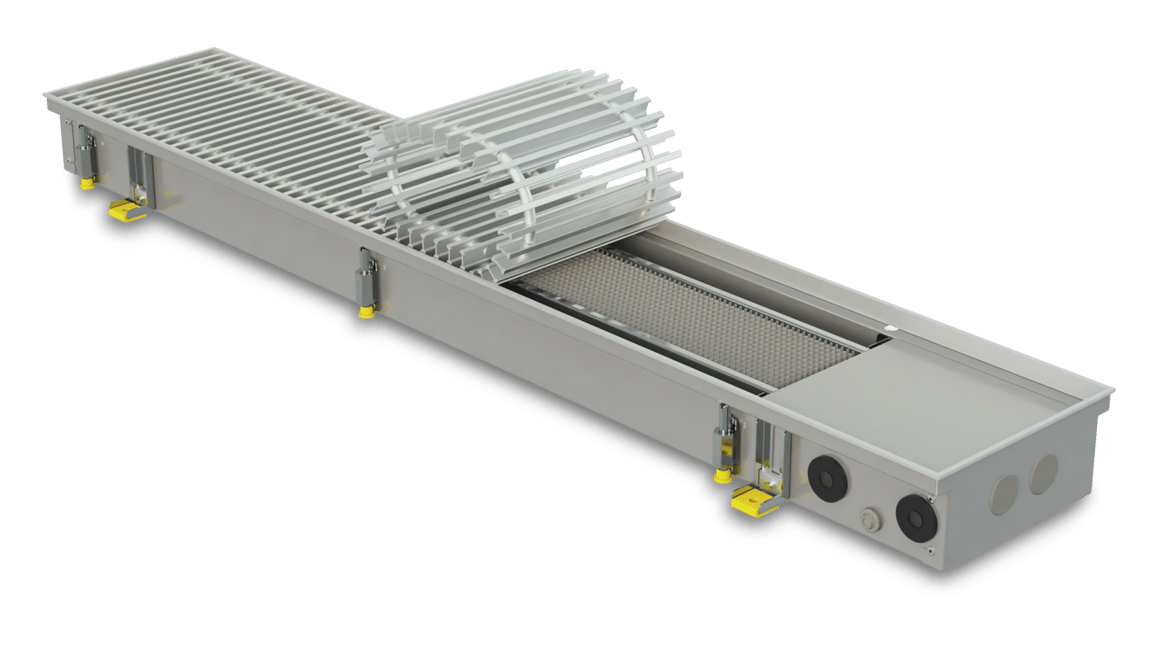

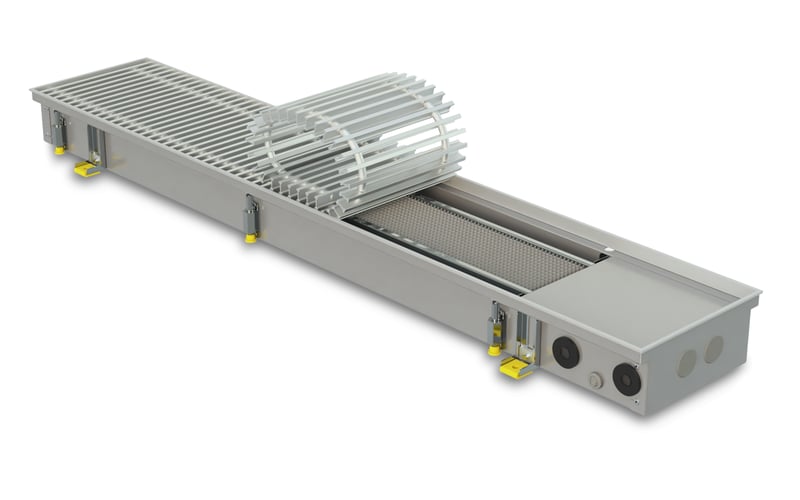

     These simple floor-mounted trench heaters FC operate on the principle of natural convection.

  • Optimal sized and located heat exchangers and specially designed air flow separation/deflection elements result a considerable capacity even without the use of a fan, thereby allowing these convectors to operate as the main heating appliance in high energy performance buildings.
  • Due to extremely low inertia, can quickly increase and maintain the set room temperature, providing the room with exactly as much heat as you require just when it is required.

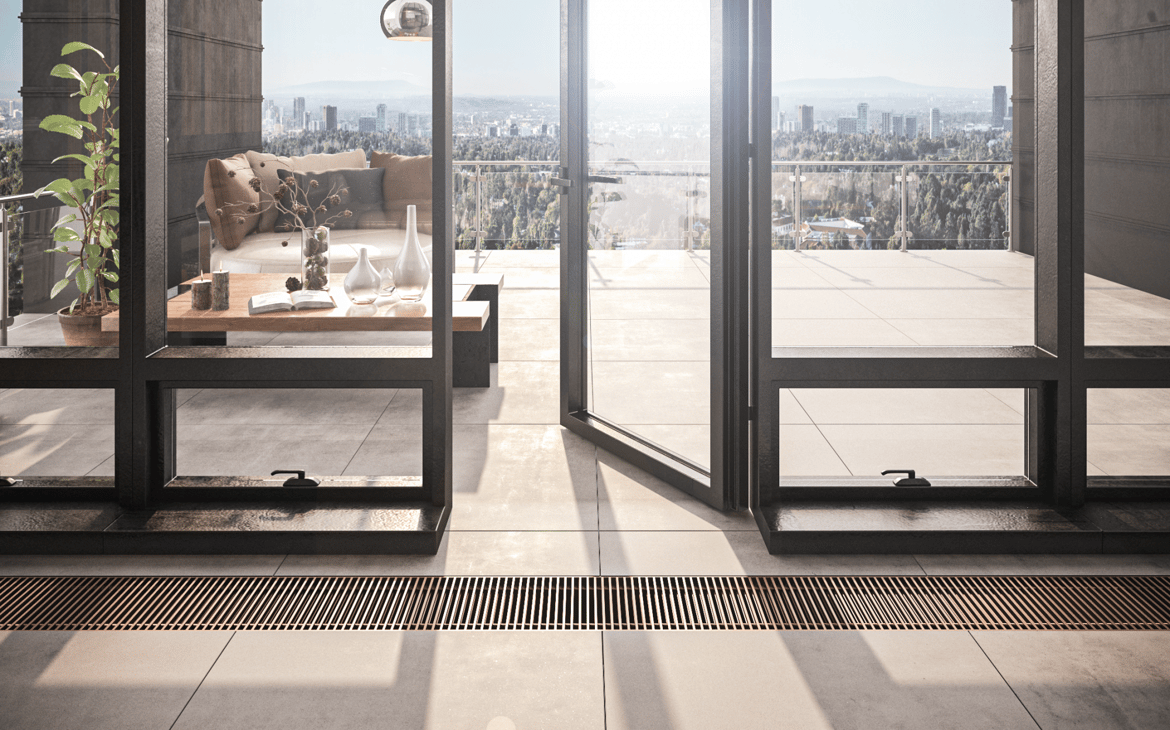

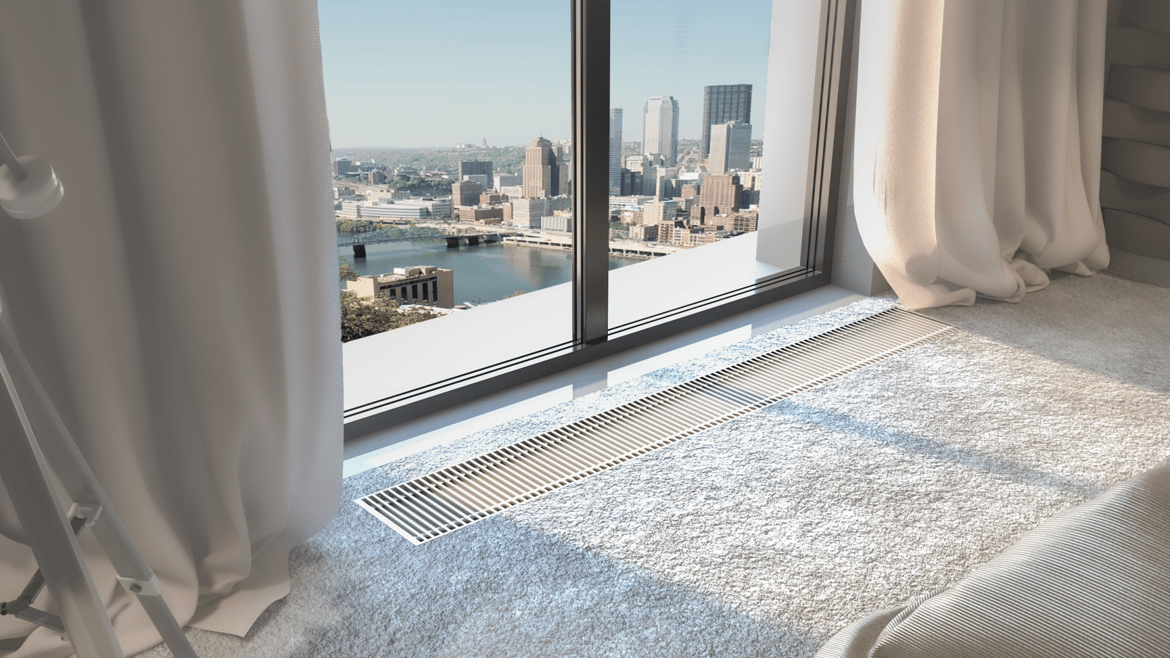

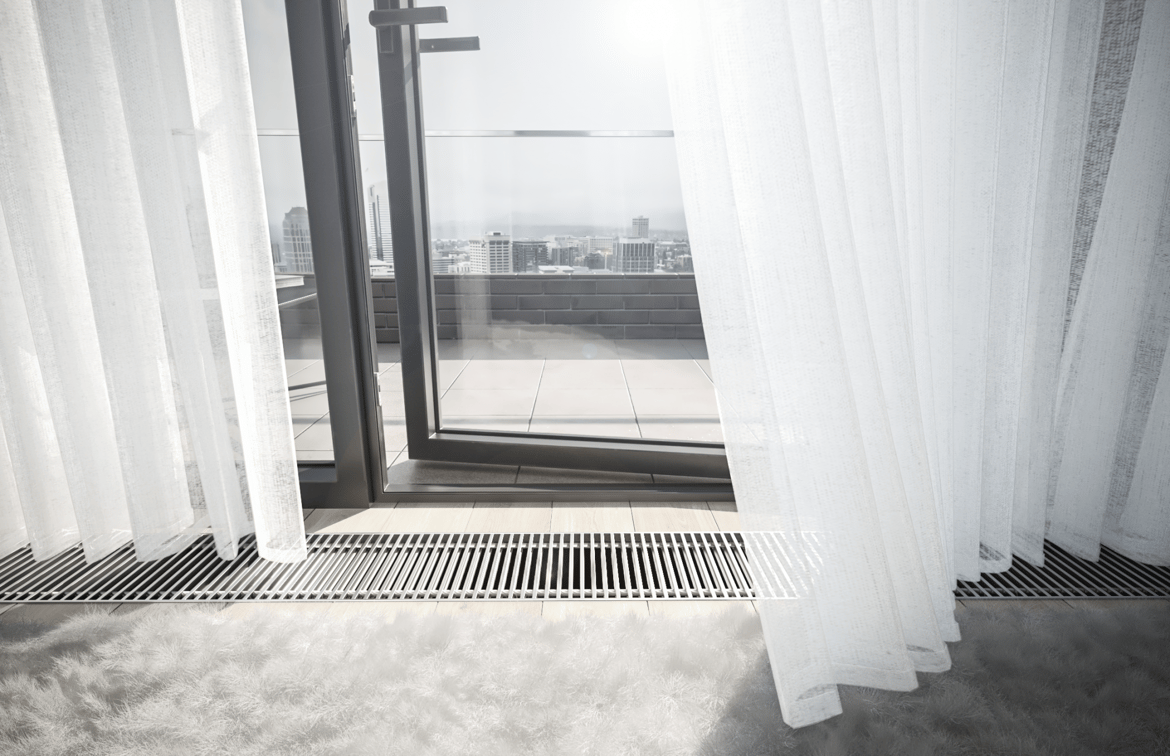

  • Create an effective warm air curtain for large windows, without allowing cold to penetrate the premises. The heat is perfectly distributed throughout the room.
  • Fully floor-mounted, and therefore do not impede free passage.

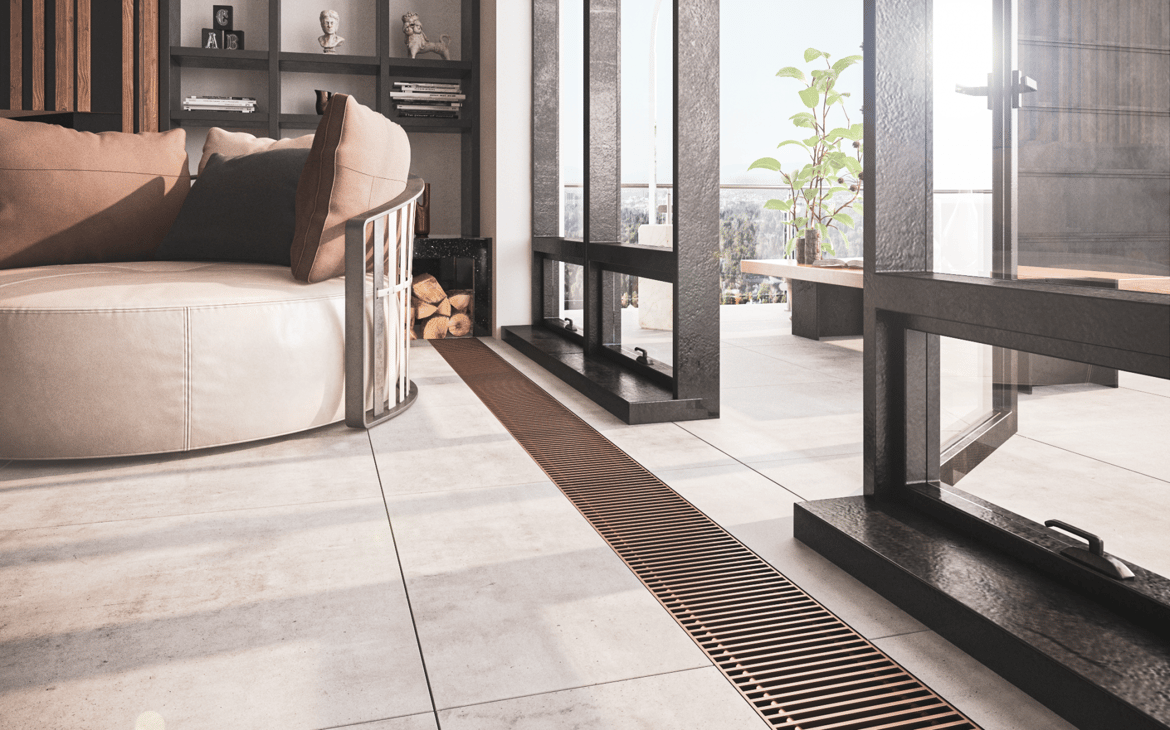

  • Perfect for any interior, as the only visible element is the grill, the material and colour of which can match the floor covering.
  • May be walked on and can easily withstand the weight of a number of adults.
  • The convectors are supplied with a stainless steel casings and copper-aluminium heat exchangers, to ensure they remain extremely reliable over the long-term.
FC heat outputs (W)
Width (cm) Height (cm) Length (cm)
80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 320 340 360 380 400 420 440 460 480 500
22 9 179 211 242 274 305 336 368 399 430 462 493 524 556 587 619 650 681 713 744 775 807 838 870 932 995 1058 1120 1183 1246 1309 1371 1434 1497
15 256 301 347 392 437 482 528 573 618 663 709 754 799 844 890 935 980 1025 1071 1116 1161 1206 1252 1342 1433 1523 1614 1704 1795 1885 1976 2066 2157
32 9 243 289 335 381 427 473 519 565 611 657 703 749 795 841 887 933 979 1025 1071 1118 1164 1210 1256 1348 1440 1532 1624 1716 1808 1900 1992 2085 2177
11 252 300 347 394 442 489 537 584 632 679 727 774 822 869 917 964 1012 1059 1106 1154 1201 1249 1296 1391 1486 1581 1676 1771 1866 1961 2056 2151 2246
15 383 451 518 586 653 721 788 855 923 990 1058 1125 1193 1260 1328 1395 1463 1530 1598 1665 1733 1800 1868 2002 2137 2272 2407 2542 2677 2812 2947 3082 3217
30 566 665 764 863 963 1062 1161 1260 1360 1459 1558 1657 1756 1856 1955 2054 2153 2253 2352 2451 2550 2650 2749 2947 3146 3344 3543 3741 3940 4138 4337 4535 4734
45 730 857 983 1110 1237 1364 1491 1618 1745 1872 1999 2125 2252 2379 2506 2633 2760 2887 3014 3141 3267 3394 3521 3775 4029 4283 4536 4790 5044 5298 5551 5805 6059
42 9 292 343 393 444 495 546 596 647 698 749 800 850 901 952 1003 1053 1104 1155 1206 1256 1307 1358 1409 1510 1612 1713 1815 1916 2018 2119 2221 2322 2424
11 353 415 477 539 601 663 725 787 849 911 973 1035 1097 1159 1221 1283 1345 1407 1469 1531 1593 1655 1717 1841 1965 2089 2213 2337 2461 2585 2709 2833 2957
15 497 585 672 760 848 935 1023 1110 1198 1285 1373 1460 1548 1636 1723 1811 1898 1986 2073 2161 2248 2336 2424 2599 2774 2949 3124 3299 3474 3649 3824 4000 4175
30 737 867 996 1125 1255 1384 1514 1643 1772 1902 2031 2160 2290 2419 2548 2678 2807 2937 3066 3195 3325 3454 3583 3842 4101 4360 4618 4877 5136 5394 5653 5912 6171
45 875 1028 1182 1335 1489 1642 1796 1949 2103 2256 2410 2563 2717 2870 3024 3177 3331 3484 3638 3791 3945 4098 4252 4559 4866 5173 5480 5787 6094 6401 6708 7015 7322

Height 9 - 15 cm

Height 30 - 45 cm

  1. Stainless steel casing
  2. Casing stiffening elements
  3. Cover for hydraulic connections
  4. Air guiding element
  5. Anodized aluminium frame; colour match the colour of grille
  6. Copper - aluminium heat exchanger
  7. Air vent
  8. Protective - decorative grille (optional)

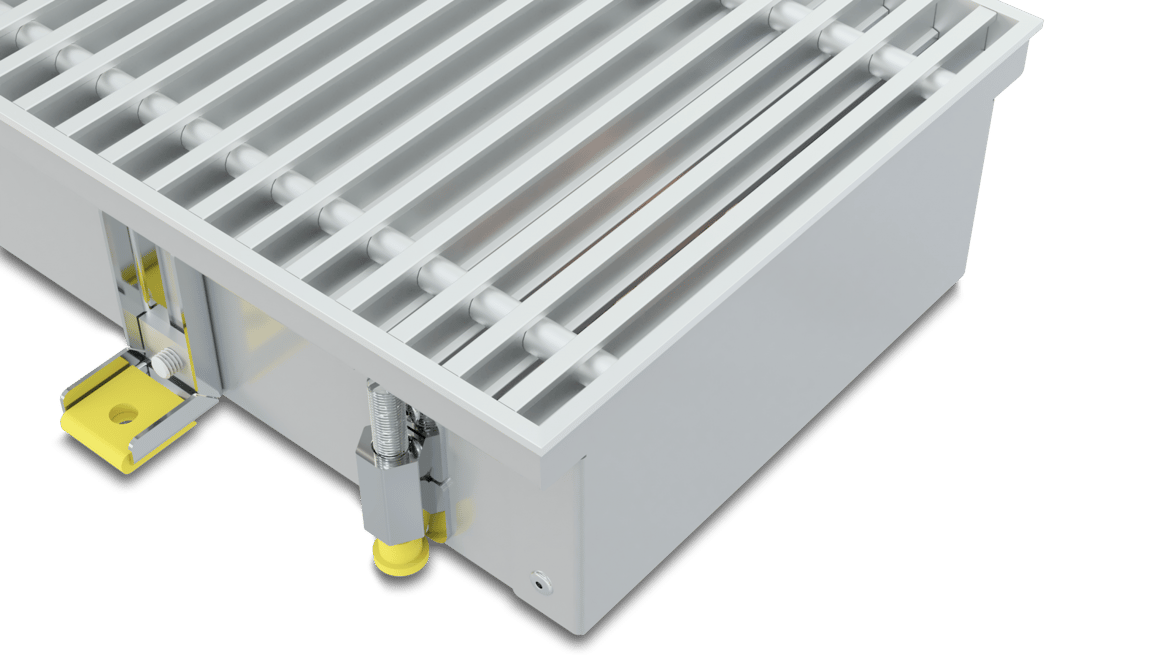

  9. Height adjustment and vertical load supporting bolts
  10. Noise isolating elements for adjusting bolts
  1. Casing fixing to floor brackets
  2. Noise isolating elements for floor brackets
  3. Heat exchanger fixing and protection elements
  4. Pipe sealing and protection elements
  5. Cable sealing and protection elements
  6. Plugs for unused holes

     Fasteners

    Installation manual

    5-layer, 2 parts cardboard box, additionally used for device protecting during installation and construction works





[6.3 MB] Catalogue Konveka FC.pdf
[2.7 MB] Installation manual Konveka FC.pdf
[37.9 MB] BIM files Konveka FC.zip

ROLL-UP ALUMINIUM GRILLES GR

SILVER (ALS) BROWN (AL10) BLACK (AL50)



ROLL-UP WOODEN GRILLES GR

OAK ASH BEECH (BEE)



LINEAR ALUMINIUM GRILLES GR-L

SILVER (ALS) BROWN (AL10) BLACK (AL50)

Room thermostats TW230
Controls thermal actuator A230NC according to preset room temperature

Dimensions 88 x 88 mm
Week timer
Operating temperature 5 - 35°C
Voltage -  230V AC, max current- 3A
Power consumption - 1,5W


Thermostatic valve (straight)  TVS15
Controls flow of energy carrier. Controled by thermal actuator A230NC or capillary thermostatic head THC


Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel



Lockshield (straight) LS15
Opens, closes or limits flow of energy carrier


Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel




Lockshield (angle) LA15
Opens, closes or limits flow of energy carrier

Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel



Thermal actuator A230NC
Opens / closes thermostatic valve. Controled by room thermostat TW230

Operating voltage  -  230V AC
Power consumption - 2,5W
Protection class - IP54
Thread - M30 x 1,5mm
Body material -  PC/ABS




Capillary thermostatic head THC
Controls preset room temperature

Temperature range 0℃ - 27℃
Protection against frozing
Length of capillary pipe - 1,2 m
Thread - M30 x 1,5mm
Body material -  ABS





ORDER CODES FOR TRENCH HEATERS

TYPE       LENGTH, cm WIDTH, cm   HEIGHT, cm EXAMPLE
FC 100 32 11 FC 100-32-11

ORDER CODES FOR GRILLES

TYPE       LENGTH, cm WIDTH, cm   MATERIAL   EXAMPLE
GR 200 32 ALS GR 200-32-ALS
GR-L 140 22 AL50 GR-L 140-22-AL50
GR      -   roll-up                                      ALS    -   aluminium, silver colour
GR-L   -   linear   AL10  -   aluminium, brown
    AL50  -   aluminium, black
    OAK   -   oak
    ASH    -   ash
    BEE     -   beech

ORDER CODES FOR ACCESSORIES

TYPE ORDER CODE
Lockshield angle LA15
Lockshield straight LS15
Thermostatic valve straight TVS15
Thermostatic valve axial TVA15
Thermal actuator 230V A230NC
Room thermostat TW230
Capillary thermostatic head        THC
