Freestanding convectors SC-H

High thermal output, allowing use as primary heating devices even in low to medium energy efficiency buildings
Efficient operation with low-temperature heat sources, such as heat pumps and condensing boilers
Low thermal inertia – quick room heating and precise maintenance of the set temperature
Wide range of sizes and thermal outputs – 288 models
Wide range of colors (standard white, RAL – on request)
Option to mount on the floor or wall
Robust construction, capable of supporting the weight of several adults
Safe to use – surface temperature does not exceed 40°C
5-year warranty
Designed and manufactured in Lithuania

10-year warranty on casings and heat exchangers
Tested in an independent laboratory according to EN16430
Silent
Maximum pressure 25 BAR

Works perfectly with condensing
boilers and heat pumps

Low
water volume
Description

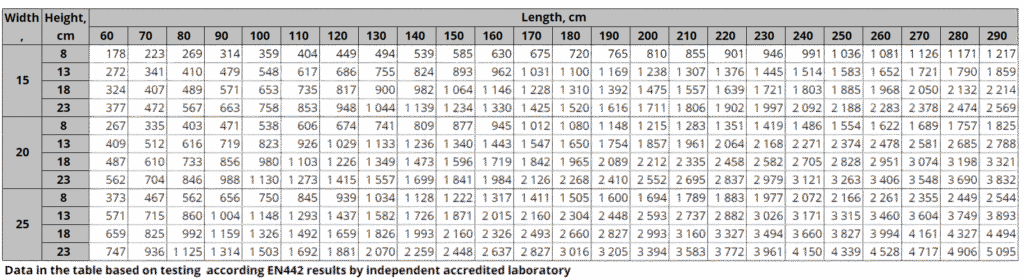

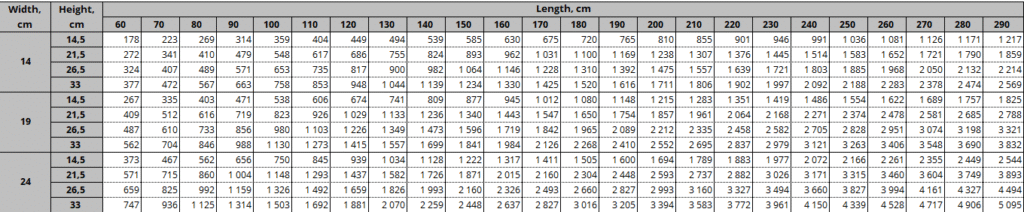

Tech. specifications

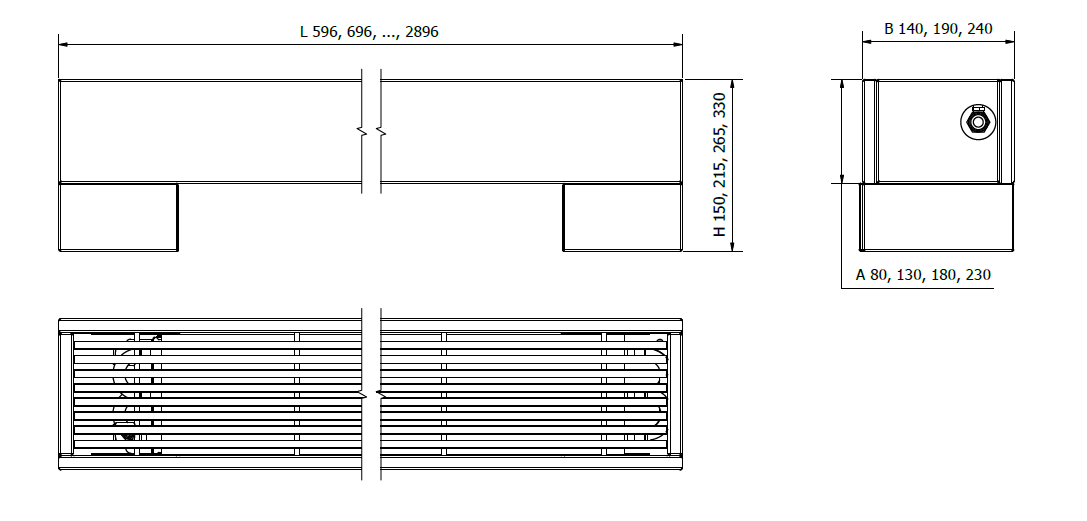

Dimensions
Configuration
Download
Accessories
Order Codes

SC-H series freestanding convectors use natural convection and are designed for space heating without fans, operating on the principle of natural air circulation. Due to their high heat output, they can be used as primary heating devices even in buildings with low to medium energy efficiency.
The convectors operate efficiently with low-temperature heat sources such as heat pumps and condensing boilers, making them well suited for modern, energy-efficient heating systems. Their low thermal inertia allows them to respond quickly to temperature changes and accurately maintain the desired room temperature.
The SC-H series offers an exceptionally wide range of sizes and heating capacities – 288 models in total – allowing the optimal solution to be selected according to the specific requirements of each project. The convectors can be installed on the floor or mounted against the wall, providing flexibility in design and installation.
Thanks to their reliable construction without moving parts, SC-H convectors ensure a long service life and require minimal maintenance. The units operate completely silently, making them particularly suitable for spaces with high acoustic comfort requirements, such as bedrooms, hotel rooms, and residential interiors.
The convectors feature a robust construction – they can withstand the weight of several adults, while the surface temperature does not exceed 40 °C, ensuring safe operation in both residential and public spaces.
The convectors are finished in white as standard, but can be powder-coated in any RAL colour on request, allowing the units to match specific interior design requirements.
All SC-H freestanding convectors are covered by a 5-year warranty for the entire unit, ensuring reliable and long-term operation.

  1. Powder-coated steel casing
  2. Heat exchanger brackets
  3. Feet
  4. Foot covers
  5. Heat exchanger protection – fixing elements
  1. Copper-aluminum heat exchanger
  2. Air vent

Mounting hardware

Installation manual

5-layer, 2-part corrugated cardboard box, also used as protective covering for the device during construction – installation work

Thermostatic valve (axial) TVA15

For regulating the energy carrier flow. Controlled by thermostatic head TH

Operating temperature -10℃ - 120℃

Thread 1/2″

Pressure class - PN10

Kvs - 2.00

Body - nickel-plated bronze

Return Flow Limiter (Angled) LA15

For opening, closing, and setting the maximum flow of the energy carrier

Operating temperature -10℃ - 120℃

Thread 1/2″

Pressure class - PN10

Kvs - 2.00

Body - nickel-plated bronze

Thermostatic head TH

For controlling the heating device according to the set room temperature

Temperature range 6℃ - 28℃

Accuracy - 0.6K

Max temperature limitation

Frost protection

Connection thread - M30 x 1.5mm

Casing material - ABS

CONVECTOR ORDER CODES

MODELLENGTH, cm WIDTH, cmHEIGHT, cmEXAMPLE
SC-H1201914.5SC-H 120-19-14

ACCESSORY ORDER CODES

ORDER
MODELCODE
Return flow limiter angular LA15
Axial thermostatic valveTVA15
Thermostatic headTH
