Cassette fan coils CF feature a wide capacity range and are designed for both efficient cooling and heating of indoor spaces. The cooling capacity ranges from 1.8 to 15.3 kW, while the heating capacity ranges from 2.7 to 23.7 kW, making the solution suitable for rooms of various sizes and applications. An airflow range of 340 to 2,890 m³/h ensures fast and even distribution of indoor climate.

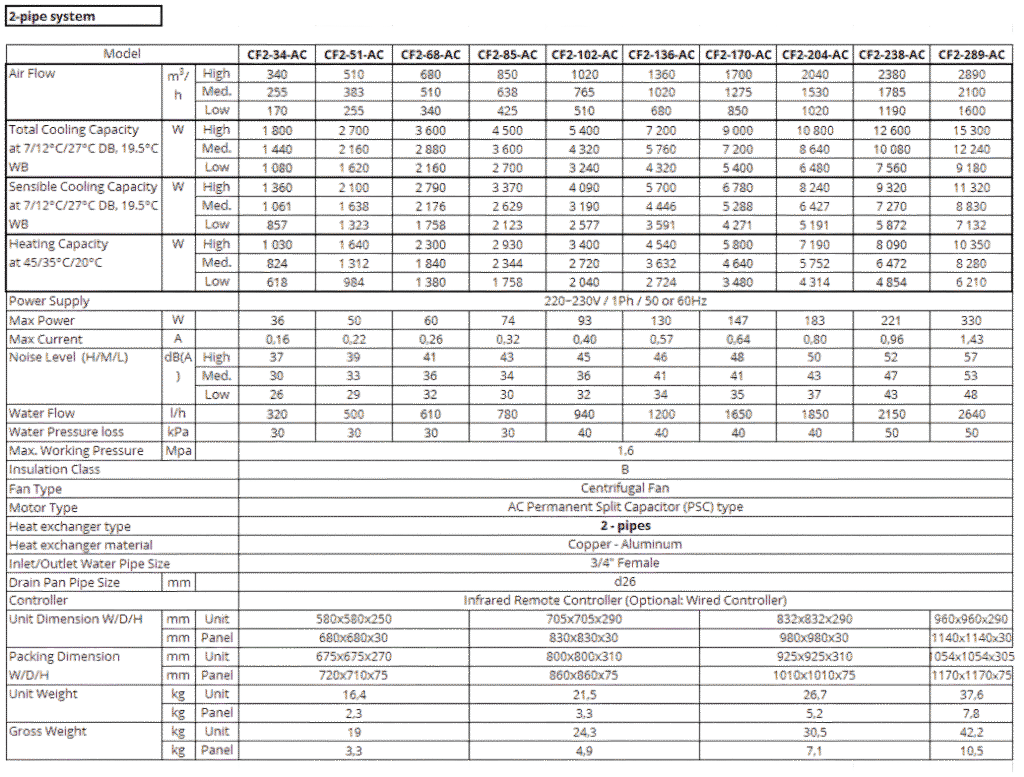

Available 2- and 4-pipe models allow for selecting the optimal solution according to project requirements. Integrated condensate pumps with a lifting height of up to 600 mm ensure reliable condensate removal even under challenging installation conditions.
CF are equipped with AC or DC fans selected according to the specific requirements of the building, while very quiet operation makes them suitable for spaces with high acoustic comfort demands.
Insulated condensate drain pans with anti-corrosion coating and copper–aluminium heat exchangers with hydrophobic coating ensure long service life, efficient heat transfer, and reliable operation even in high-humidity conditions. Four-way air distribution helps maintain uniform temperature throughout the room, while washable nylon air filters provide easy maintenance and a clean indoor environment.
