Golvinbyggda läktkonvektor FCH
Längd från 120 till 300 cm
Bredde 32 cm
Höjd 16 cm
Uppvärmning Kylning Med fläktar
Till katalogen
FCH izometrija shadow.png FCH_shadow.png FCH 54_009pp.png 50_004pp.jpg FCH 50_001.png FCH 51_001.png

Dessa är de mest kraftfulla dike konvektorer för uppvärmning och kylning.

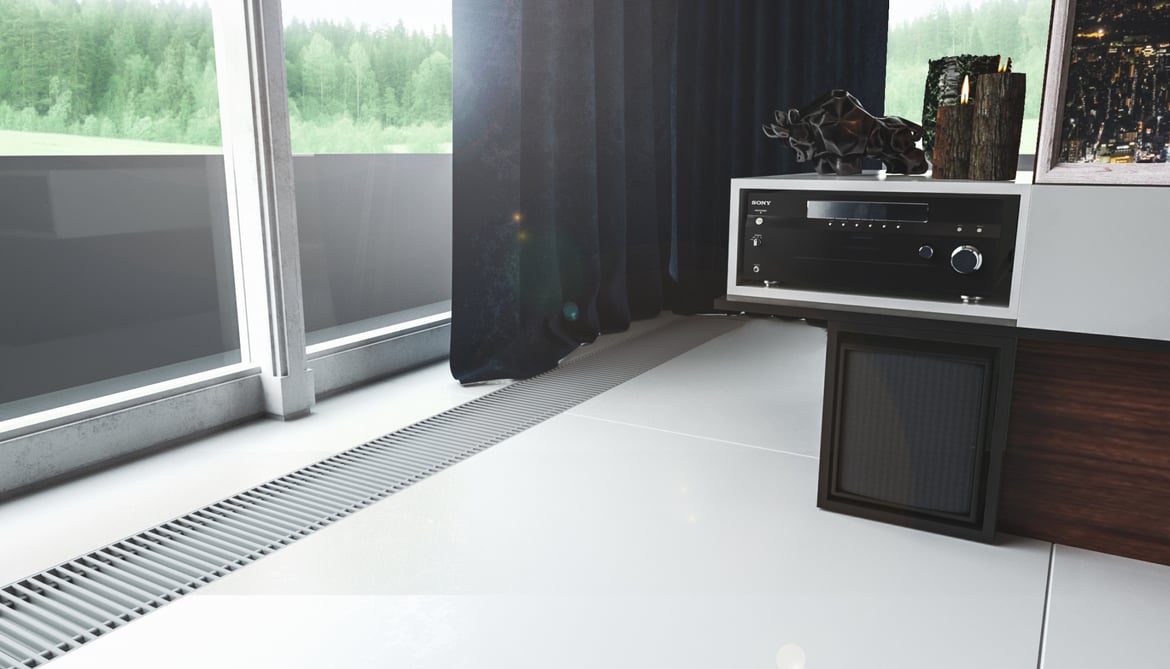

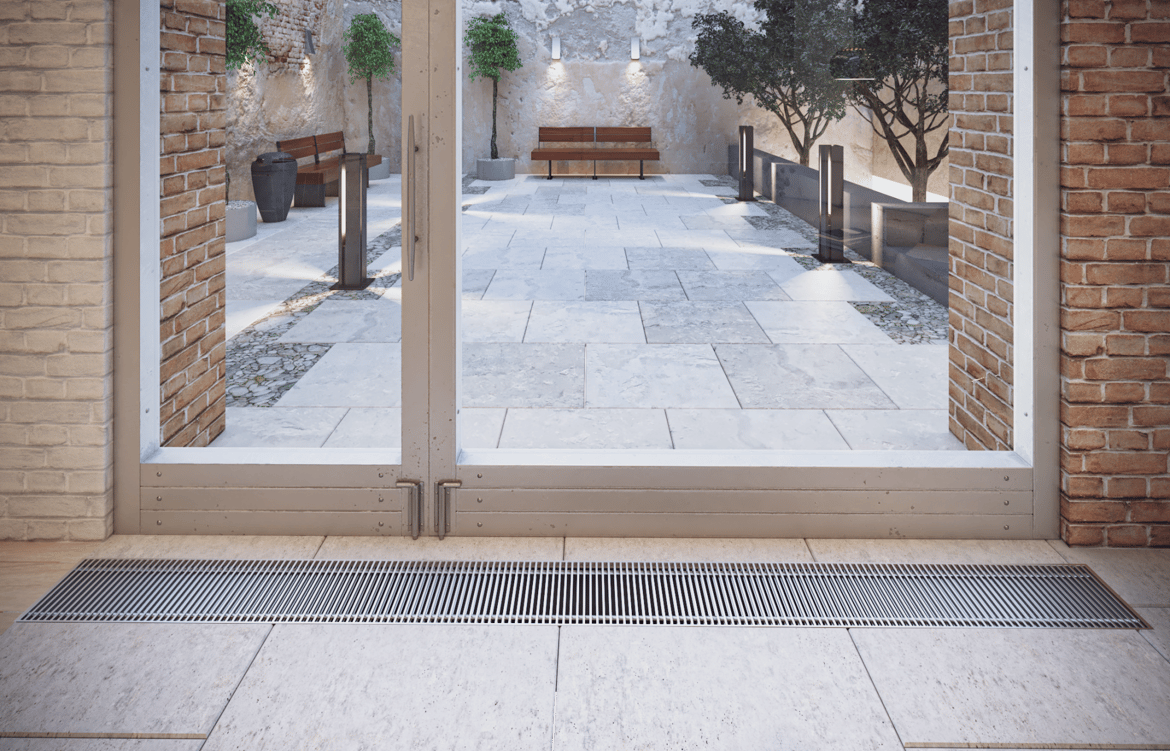

  • Den höjer både uppvärmd och kyld luft hela vägen till taket i rummet, vilket garanterar dess jämn fördelning i rummet. Skapar en gardin av varm (eller sval) luft nära skyltfönster, förhindra från kyla eller värme tränger in i rummet.
  • På grund av den låga trögheten höjer de snabbt och bibehåller exakt den inställda rumstemperaturen, vilket ger rummet så mycket värme som och när det behövs.
  • Tyst och de mest ekonomiska EC-fläktarna ökar konvektionseffektiviteten mer än 4 gånger, med nästan inget ljud.
  • De är helt dikesgrävda därför de inte hindrar med fri promenad. Det kan gås fritt över enheten som den bibehåller vikte av även ett fåtal vuxna.
  • Lämplig för alla interiörer, det enda synliga elementet av dem är deras rutnät, vars material och färg är matchas till golvbeläggningen.
  • FCH fungerar särskilt bra med låga temperaturvärmekällor som värmepumpar eller kondenseringspannor.
  • 4 och 2 röranslutningsmöjligheter finns tillgängliga. Enheter med 4-rörsanslutning garanterar maximal flexibilitet i deras användning, med 2-rörsanslutning - maximal effekt.
  • Luften som strömmar genom enheten filtreras ständigt, fånga en hel del smuts och skydda enheten från kontaminering.
  • Den har kondensat insamling och urladdning bad, så det kan fungera både över och under daggpunkten.
  • Levereras som standard med rostfritt stål kropp och koppar-aluminium värmeväxlare, vilket gör dem extremt hållbara.
Värme Kyl
FCH2 värme- / kylkapacitet, W. 2-rörssystem
Längd Fläkthastighet
20% 40% 60% 80% 100%
120 973 1830 2523 3052 3418
170 1751 3294 4542 5494 6152
200 1945 3660 5047 6105 6835
250 2723 5124 7065 8547 9569
300 3501 6588 9084 10989 12303
FCH4 värme- / kylkapacitet, W. 4-rörssystem
Längd Fläkthastighet
20% 40% 60% 80% 100%
120 901 1380 1661 1859 2013
170 1623 2485 2989 3347 3624
200 1803 2761 3321 3719 4027
250 2524 3865 4650 5206 5638
300 3245 4969 5978 6694 7249

1. Rostfritt stål kropp

2. Värmeväxlarhållare

3. Hydrauliskt anslutningsskydd

4. Kroppsförstyvande element

5. Element för luftavböjning

6. Kondensbad

7. Värmeväxlare av koppar-aluminium

8. Ventilator

9. Värmeväxlare montering-säkerhetselement

10. Ventilator med EG-motor

11. Luftfilter

12. Ventilator vibro-isolering sulor

13. Kontrollenhet (beställs separat



14. Skyddande - dekorsgaller (ska beställas separat)

15. Höj- och sänkbara ben

16. Ljudisolerande fotstöd

17. Element för karossmontering till golvet

18. Ljudisolerande packningar

19. Rör tätning-säkerhetselement

20. Kabel tätning-säkerhetselement

21. Pluggar för oanvända hål

22. Anodiserad aluminiumram; färgen motsvarar rutfärgen

[7.1 MB] Catalogue Konveka FCH.pdf
[1.9 MB] Installation manual Konveka FCH.pdf
[6.8 MB] BIM files Konveka FCH.zip

RULLA-UP-RUTNӒT AV ALUMINIUM GR

SILVER (ALS) BRUN (AL10)  SVART FÄRGER (AL50)



RULLA UPP RUTNӒT AV TRÄ GR

FRÅN EK (OAK) ASKTRÄD (ASH) BOKTRÄD (BEE)



LÄNGSGÅENDE ALUMINIUMRUTNӒT GR-L

SILVER (ALS) BRUN (AL10)  SVART FÄRGER (AL50)

Rumstermostat TW24

Kugghjul A24NC för styrning enligt den inställda rumstemperaturen

Mätningar 88 x 88 mm
Veckovis temperatur schema programmering
Drifttemperatur 5 - 35°C
Driftspänning  -  24V DC,  Elektrisk ström- 3A
Elkraft - 1,5W


Termostatventil (rak) TVS15

För energibärare flödeskontroll. Styrs av manöverdonet för termostatventil A24NC


Drifttemperatur  -10℃ - 120℃
Tråd 1/2″
Tryckklass  - PN10
Kvs - 2,00
Kropp - förnicklad brons



Returflödesbegränsare (rak) LS15

För öppning, stängning och inställning av energibärarens maximala flöde


Drifttemperatur-10℃ - 120℃
Tråd 1/2″
Tryckklass  - PN10
Kvs - 2,00
Kropp - förnicklad brons




Returflödesbegränsare (kantig) LA15

För öppning, stängning och inställning av energibärarens maximala flöde

Drifttemperatur  -10℃ - 120℃
Tråd 1/2″
Tryckklass  - PN10
Kvs - 2,00
Kropp - förnicklad brons



Växel för termostatventil A24NC

För öppning/ stängning av termostatventilen. Styrs av rumstermostatet TW24

Driftspänning -  24V DC
Elkraft - 2,5W
Säkerhetsklass - IP54
Anslutningsgänga - M30 x 1,5mm
Karossmaterial PC/ABS




Kontrollpanelen CB60

För anslutning och strömförsörjning av ventilatorer, ställdon A24NC och rumstermostat TW24

24V DC nätaggregat
Effekt - 60W
Elektrisk ström  - 0,84A
Elektriska anslutningsterminaler
Rostfritt stål kropp




KONVEKTOR BESTÄLLNINGARKODER

MODELL  LÄNGD, cm    BREDD, cm HÖJD, cm PROV
FCH2 200 32 13 FCH2 200
FCH4 200 32 13 FCH4 200

RUTNӒT BESTÄLLNINGARKODER

MODELL  LÄNGD, cm     BREDD, cm MATERIAL  PROV
GR 200 32 ALS GR 200-32-ALS
GR-L 200 32 ALS GR-L 200-32-ALS
GR      -   rulle                                                                ALS    -   aluminium, silver
GR-L   -  linjär   AL10  -   aluminium, brun
    AL50  -   aluminium, svart
    OAK   -   ekgrill
    ASH    -   askgaller
    BEE     -   bokgrill

TILLBEHÖR BESTÄLLNINGSKODER

MODELL BESTÄLLNINGSKODER
Returflödesbegränsare (rak) LS15
Returflödesbegränsare (kantig)                LA15
Termostatventil (rak)  TVS15
Termostatventil (axiell) TVA15
Växel för termostatventil  24V A24NC
Kontrollpanelen CB60
Rumstermostat  TW24
