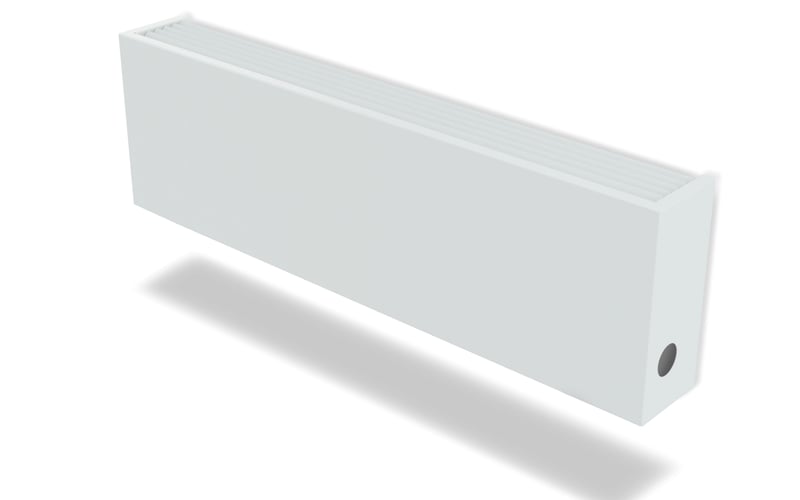

Wall-mounted convectors WMC

Wall-mounted convectors WMC
Heat output up to 4 956 W
Length from 60 to 200 cm
Width 8, 13, 18 ir 23 cm
Height 30, 40, 50 ir 60 cm
Heating Natural convection
Into the catalog
WMC izometrija shadow.png WMC_shadow.png WMC sprogimas shadow.png 51_004pp WMC.png pakabinamas.jpg
10-years warranty for heating elements Tested by independent laboratory according to EN442 Max working pressure 25 bar Noiseless Work perfectly with heat pumps and condensing boilers Small water content Easy and fast installation

Natural convection wall-mounted convectors WMC are cost efficient and effective heating appliances. They have a high heating capacity and can be used as the main heating devices, even in the case of low to medium energy performance buildings.

  • Due to extremely low inertia, can quickly increase and maintain the set room temperature, providing the room with exactly as much heat as you require just when it is required.
  • Create an effective warm air curtain for large windows, without allowing cold to penetrate the premises. The heat is perfectly distributed throughout the room.
  • The standard colour is white, but they are also available in other RAL standard colours on request.
  • A classic design and a wide range of colour options allow the convectors to be adapted to a wide range of the interior designs and styles.
  • The casings are safe: they have no sharp edges and do not reach temperatures over 40°C.
  • The design is simple and has been created for a fast and easy installation.
WMC heat outputs (W)
Width (cm) Height (cm) Length (cm)
60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
8 30 191 239 287 335 383 431 478 526 574 622 670 718 765 813 861
40 207 258 310 362 413 465 517 568 620 672 723 775 826 878 930
50 222 277 333 388 444 499 555 610 666 721 777 832 888 943 999
60 237 297 356 415 474 534 593 652 712 771 830 890 949 1008 1067
13 30 395 493 592 691 790 888 987 1086 1184 1283 1382 1480 1579 1678 1776
40 451 563 676 789 901 1014 1127 1240 1352 1465 1578 1690 1803 1916 2028
50 490 612 735 857 980 1102 1225 1347 1470 1592 1715 1837 1960 2082 2205
60 529 661 794 926 1058 1191 1323 1455 1587 1720 1852 1984 2117 2249 2381
18 30 598 747 897 1046 1196 1345 1495 1644 1794 1943 2093 2242 2392 2541 2691
40 673 841 1009 1177 1345 1513 1681 1849 2018 2186 2354 2522 2690 2858 3026
50 747 934 1121 1307 1494 1681 1868 2055 2241 2428 2615 2802 2988 3175 3362
60 822 1027 1233 1438 1643 1849 2054 2260 2465 2671 2876 3081 3287 3492 3698
23 30 844 1055 1266 1477 1688 1899 2110 2321 2532 2743 2954 3165 3376 3587 3798
40 930 1162 1395 1627 1859 2092 2324 2557 2789 3022 3254 3486 3719 3951 4184
50 1016 1269 1523 1777 2031 2285 2539 2793 3047 3300 3554 3808 4062 4316 4570
60 1101 1377 1652 1927 2203 2478 2753 3029 3304 3579 3855 4130 4405 4681 4956

  1. Powder coated steel casing
  2. Brackets
  3. Copper aluminium heat exchanger
  4. Air vent
  5. Heat exchanger fixing-protection elements

      Fasteners

      Installation manual

      Cardboard box



[5.4 MB] Catalogue Konveka WMC.pdf
[1 MB] Installation manual Konveka WMC.pdf
[9.1 MB] BIM files Konveka WMC.zip

Thermostatic valve (axial) TVA15
Controls flow of energy carrier. Controled by thermostatic head TH


Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel


Lockshield (angle) LA15
Opens, closes or limits flow of energy carrier

Operating temperature  -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel



Thermostatic head TH
Controls preset room temperature

Temperature range 6℃ - 28℃
Accuracy - 0,6K
Max temperature limitation
Frost protection
Thread - M30 x 1,5mm
Body material - ABS




ORDER CODES FOR CONVECTORS

TYPE    LENGTH, cm WIDTH, cm     HEIGHT, cm  EXAMPLE
WMC 120 13 50 WMC 120-13-50

ORDER CODES FOR ACCESSORIES

TYPE ORDER CODE
Lockshield angle LA15
Thermostatic valve axial                         TVA15
Thermostatic head TH
