Trench fan coils FCHV

Trench fan coils FCHV
Length from 120 to 300 cm
Width 36 cm
Height 16 cm
Heating Cooling With fans
Buy
FCHV izometrija shadow.png FCHV_shadow.png FCH 54_009pp.png 50_004pp.jpg FCH 50_001.png FCH 51_001.png
10-years warranty for casings and heating elements Made of stainless steel Tested by independent accredited laboratory according to EN16430 Especially low noise level The most economical and quiet EC-type fans Max working pressure 25 bar Safe voltage of fans Work perfectly with heat pumps and condensing boilers Drain pans are in standard set Acoustically insulated

FCHV are among the most powerful trench heaters designed for heating and cooling. In addition, it has an option to supply air from a ventilation system into the room. Ventilation ducts are connected directly to the casing from the side of the room. In this way, fresh air bypasses the heating-cooling unit and a wide stream of air is supplied via the window.

  • Both heated and cooled air is raised right up the ceiling to result in an even distribution throughout the room.
  • 4 and 2 pipe connection versions are available. The 4 pipe connection guarantees maximum flexibility, whereas the 2 pipe connection will ensure the maximum capacity.
  • The air flow passing through the appliance is continuously filtered to trap a considerable part of the dust and dirt in the room and protect the convector from contamination.
  • The set includes drain pans that allow the device to operate both above and below the dew point.
  • Quiet and extremely economical EC fans increase the convection efficiency more than 4 times, almost without any sound.
  • Due to extremely low inertia, can quickly increase and precisely maintain the set room temperature, providing the room with exactly as much heat as you require just when it is required.

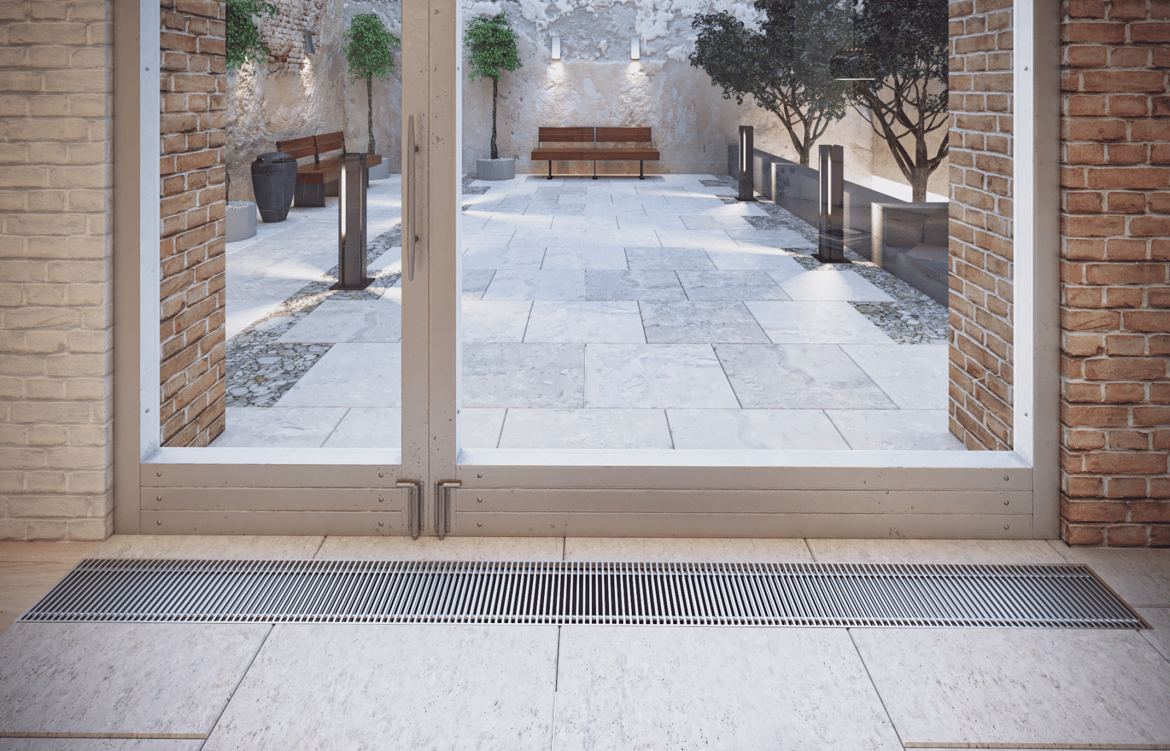

  • Create an effective warm air curtain for large windows, without allowing cold to penetrate the premises. The heat is perfectly distributed throughout the room.
  • Operates very well with low-temperature heat sources, such as heat pumps or condensing boilers.
  • Fully floor-mounted, and therefore do not impede free passage.

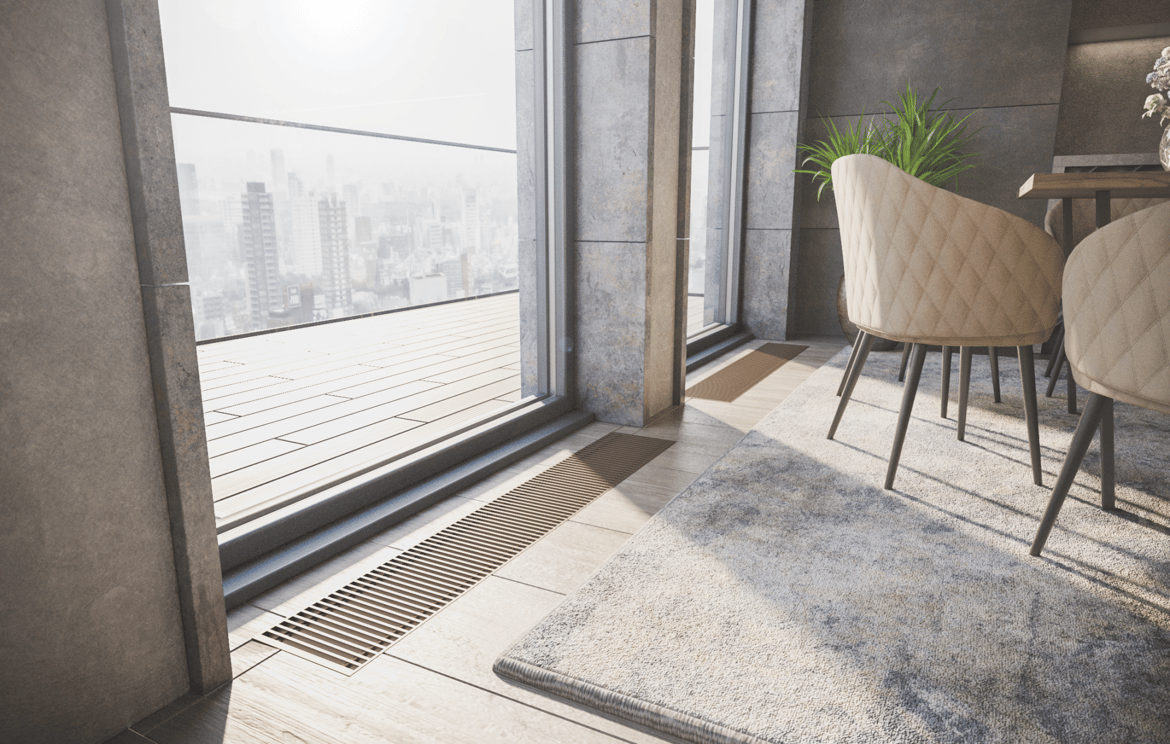

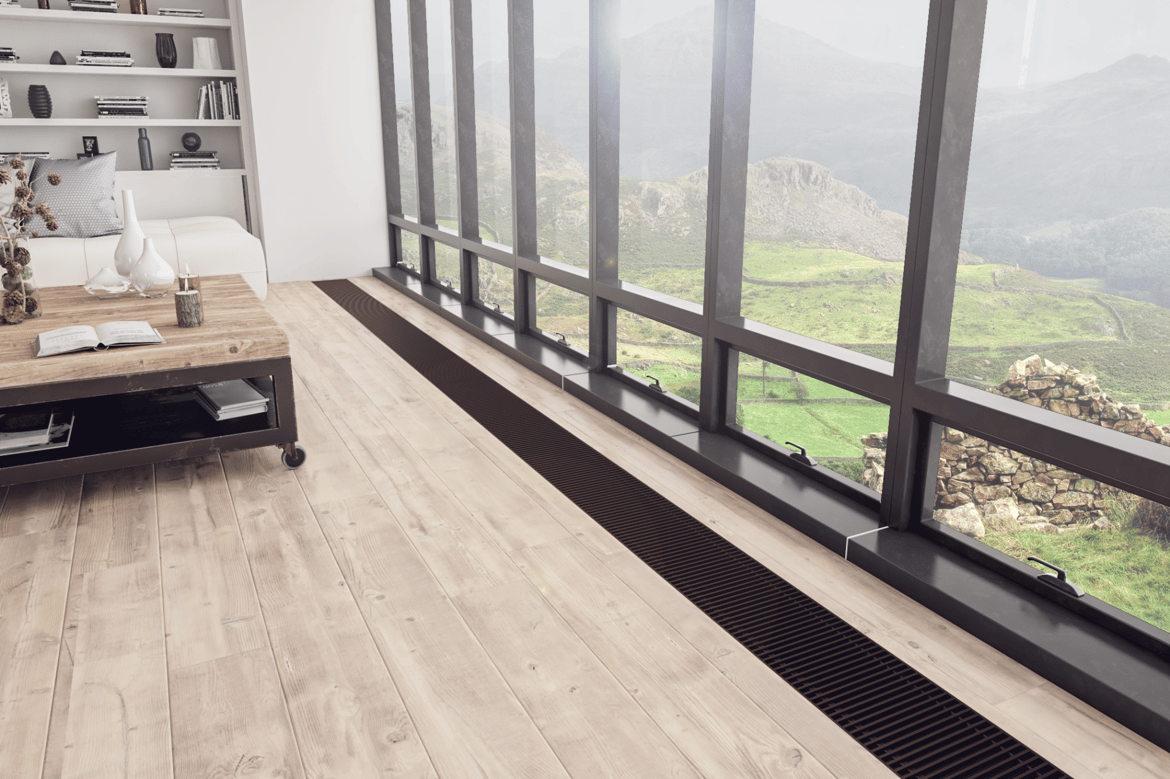

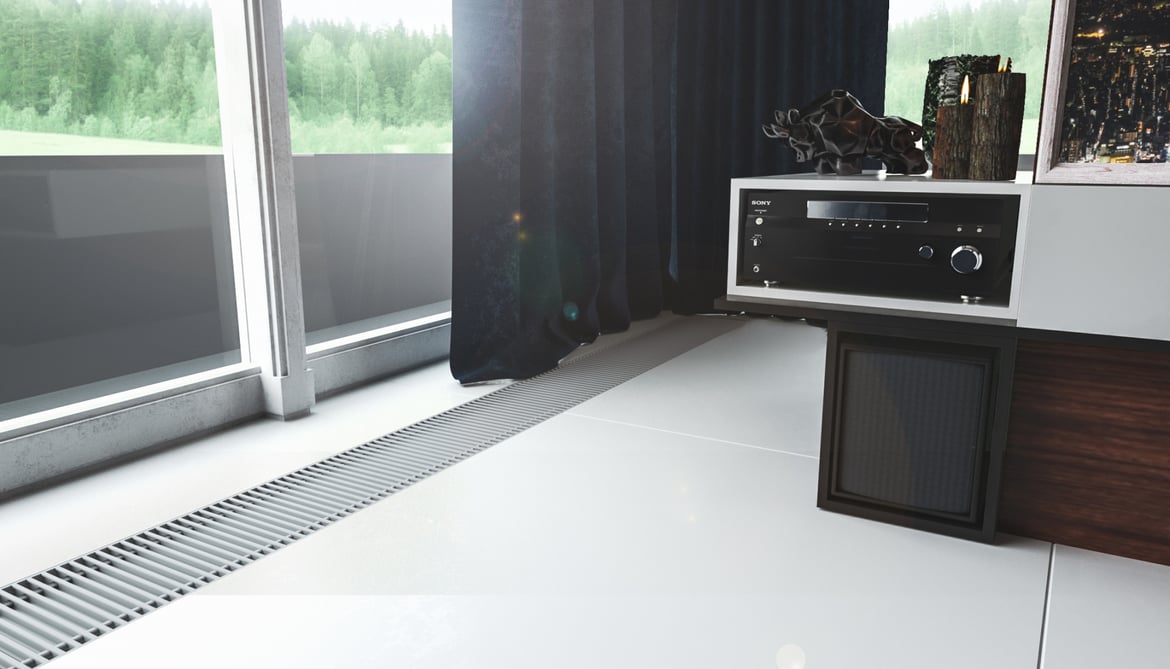

  • Perfect for any interior, as the only visible element is the grill, the material and colour of which can match the floor covering.
  • May be walked on and can easily withstand the weight of a number of adults.
  • Supplied with a stainless steel casings and copper-aluminium heat exchangers, to ensure they remain extremely reliable over the long-term.
Heating Cooling
FCHV2 heat outputs/cooling capacities (W). 2-pipe system
Length (cm) Rotation speed of fans
20% 40% 60% 80% 100%
120 973 1830 2523 3052 3418
170 1751 3294 4542 5494 6152
200 1945 3660 5047 6105 6835
250 2723 5124 7065 8547 9569
300 3501 6588 9084 10989 12303
FCHV4 heat outputs/cooling capacities (W). 4-pipe system
Length (cm) Rotation speed of fans
20% 40% 60% 80% 100%
120 901 1380 1661 1859 2013
170 1623 2485 2989 3347 3624
200 1803 2761 3321 3719 4027
250 2524 3865 4650 5206 5638
300 3245 4969 5978 6694 7249

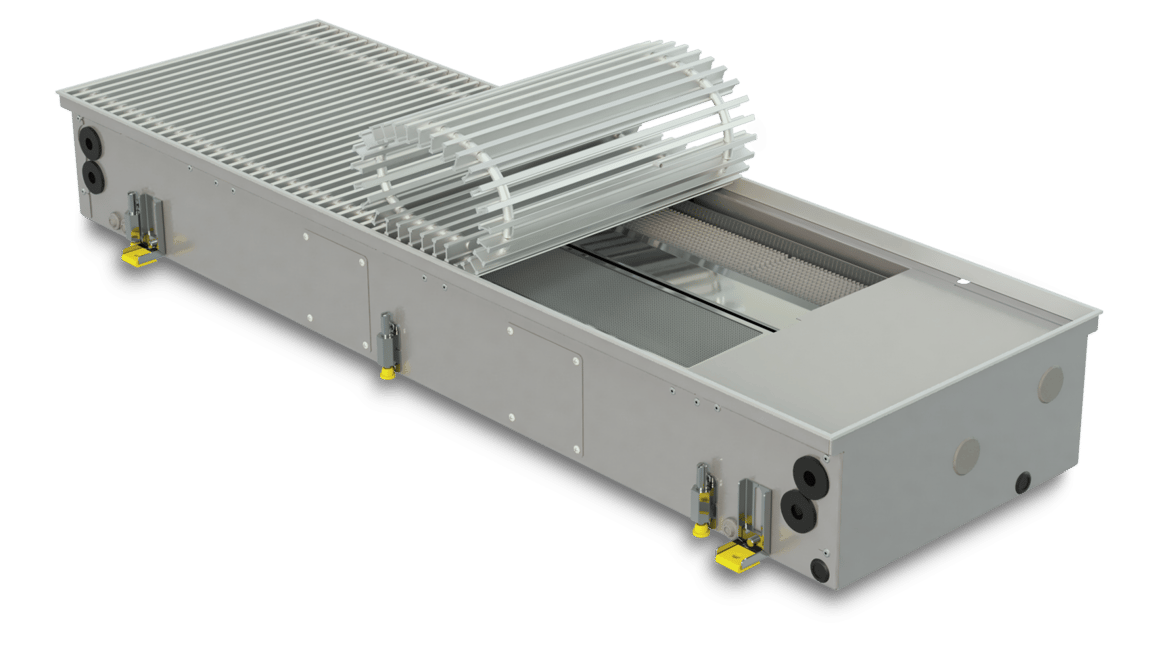

  1. Stainless steel casing
  2. Inner stainless steel casing
  3. Brackets for heat exchanger

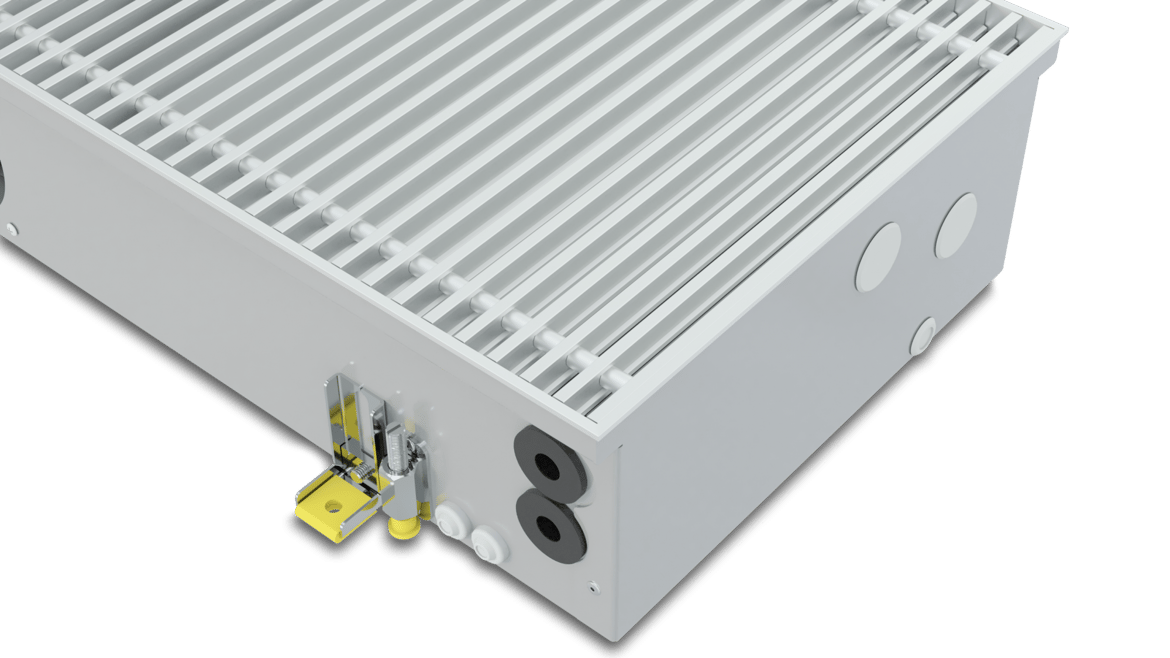

  4. Hydraulic connections cover
  5. Air guiding element
  6. Casing's stiffening elements
  7. Protective - decorative grille (optional)
  8. Drain pan
  9. Covers for holes for air ducts
  10. Copper - aluminium heat exchanger
  11. Air vent
  12. Fan with EC motor
  13. Air filter
  14. Vibration dampers for fan
  1. Control box (optional)
  2. Height adjustment and vertical load supporting bolts
  3. Noise isolating elements for adjusting screws
  4. Casing fixing to the floor brackets
  5. Noise isolation elements for floor brackets
  6. Pipe sealing and protection elements
  7. Cable sealing and protection elements
  8. Plugs for unused casing holes
  9. Anodized aluminium frame; colour matches the colour of grille
  10.  Heat exchanger fixing - protecting elements

     Fasteners

     Installation manual

     5-layer, 2 parts cardboard box, additionally used for device protecting during installation and construction works
[6.9 MB] Catalogue Konveka FCHV.pdf
[3.3 MB] Installation manual Konveka FCHV.pdf
[6.5 MB] BIM files Konveka FCHV
[635.4 KB] Installation and user guide_Room thermostat Konveka TW24.pdf
[174.1 KB] TW24 Modbus settings.pdf

ROLL-UP ALUMINIUM GRILLES GR

SILVER (ALS) BROWN (AL10) BLACK (AL50)



ROLL-UP WOODEN GRILLES GR

OAK ASH BEECH (BEE)



LINEAR ALUMINIUM GRILLES GR-L

SILVER (ALS) BROWN (AL10) BLACK (AL50)

Room thermostats TW24
Controls thermal actuator A24NC according to preset room temperature

Dimensions 88 x 88 mm
Week timer
Operating temperature 5 - 35°C
Voltage -  24V DC, max current - 3A
Power consumption - 1,5W


Thermostatic valve (straight) TVS15
Controls flow of energy carrier. Controled by thermal actuator A24NC


Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel



Lockshield (straight) LS15
Opens, closes or limits flow of energy carrier


Operating temperature -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel




Lockshield (angle) LA15
Opens, closes or limits flow of energy carrier

Operating temperature  -10℃ - 120℃
Thread 1/2″
Pressure rating - PN10
Kvs - 2,00
Bidy - brass covered by nickel



Thermal actuator A24NC
Opens / closes thermostatic valve. Controled by room thermostat TW24

Operating voltage -  24V DC
Power consumption - 2,5W
Protection class - IP54
Thread - M30 x 1,5mm
Body material - PC/ABS




Control box CB60
For power supply of fans, actuators A24NC and room thermostat TW24

24V DC power supply
Power - 60W
Current - 0,84A
Electrical terminals
Stainless steel casing









ORDER CODES FOR TRENCH HEATERS

TYPE LENGTH, cm WIDTH, cm HEIGHT, cm EXAMPLE
FCHV2 200 36 16 FCHV2 200
FCHV4      200 36 16 FCHV4 200

ORDER CODES FOR GRILLES

TYPE LENGTH, cm WIDTH, cm MATERIAL   EXAMPLE
GR 200 36 ALS GR 200-36-ALS
GR-L         200 36 ALS GR-L 200-36-ALS
GR      -   roll-up                                                                                            ALS    -   aluminium, silver colour
GR-L   -   linear   AL10  -   aluminium, brown
    AL50  -   aluminium, black
    OAK   -   oak
    ASH    -   ash
    BEE     -   beech

ORDER CODES FOR ACCESSORIES

TYPE ORDER CODE
Lockshield straight LS15
Lockshield angle LA15
Thermostatic valve straight                  TVS15
Thermostatic valve axial TVA15
Thermal actuator 24V DC A24NC
Control box CB60
Room thermostat TW24
